Stainless Steel Through Wall Interior Drop Slot

This Through the Wall Stainless Steel Drop Slot is for interior applications only. It is a simple all-in-one payment drop slot that is designed to be used to quickly pass materials through interior walls. For added security or convenience a thumb screws allows you to lock the depository flap in place making it secure and an effective way to close the drop door slot from accepting anymore deposits.

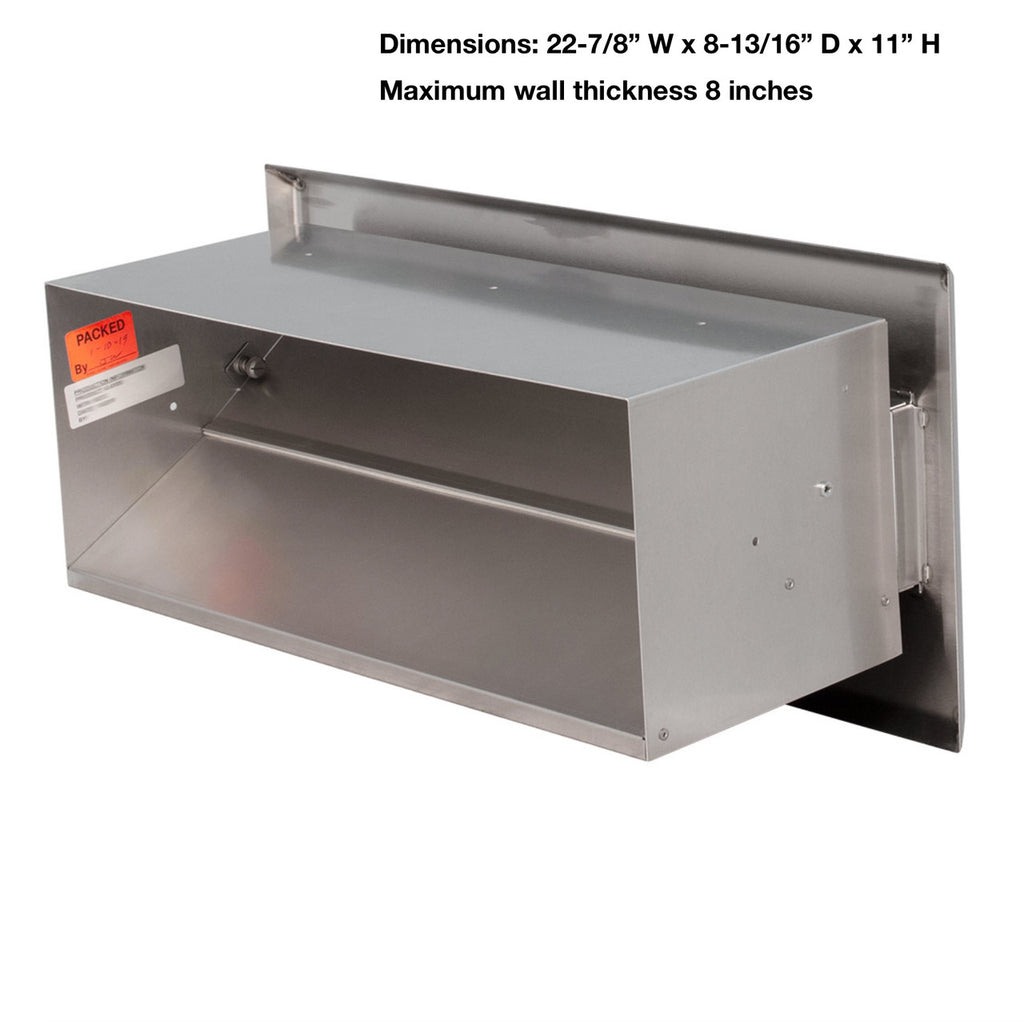

The mail slot opening is 19-5/8” W x 3-1/2” H. The maximum wall thickness is 8 inches. The overall dimensions are 22-7/8” W x 8-13/16” D x 11” H. This is a complete ready to install one-piece system. Installation instructions included.

Door opens in ward and is gravity and weight balanced allowing it to automatically close after materials have passed through. There is a simple thumb screw which works as a lock. turn from the inside with thumbscrews on either side to lock the drop door.

Interior Through Wall Drop Specifications and Features:

• Made of: Stainless steel faceplate and door flap and chute is aircraft grade aluminum (extends 8”)

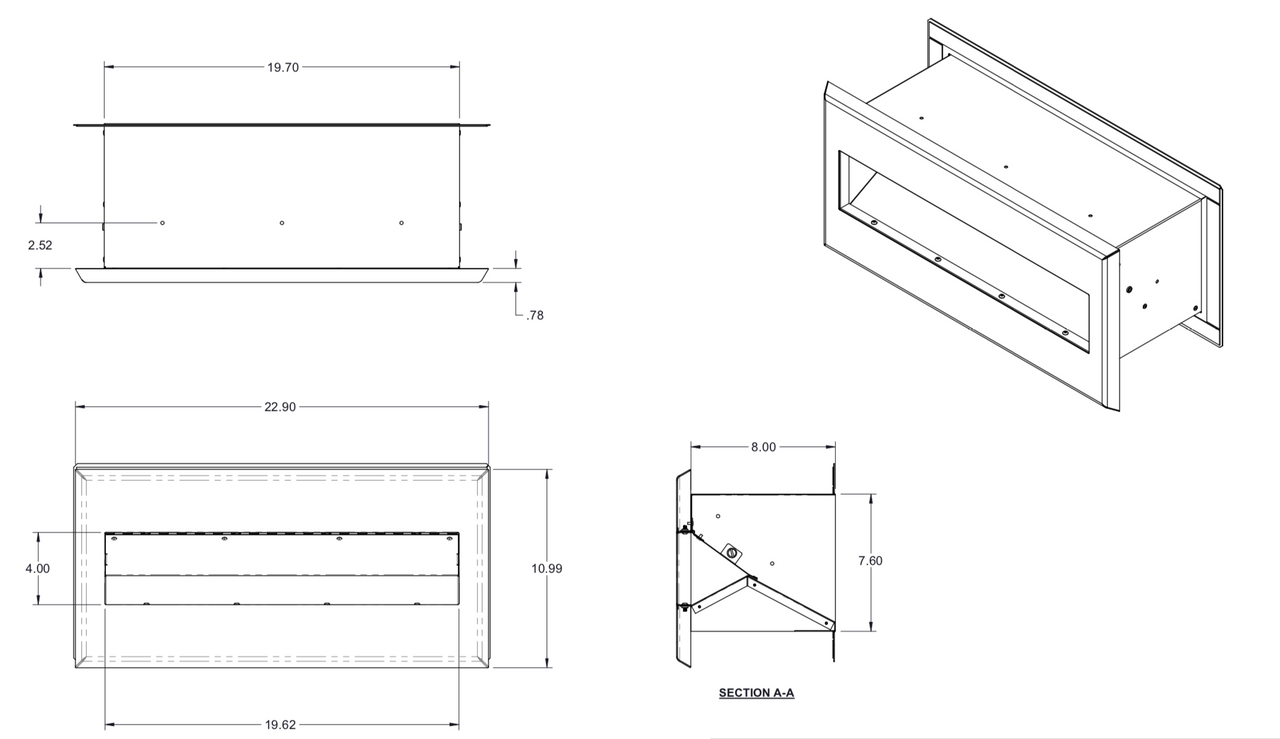

• Dimensions: 22-7/8” W x 8-13/16” D x 11” H

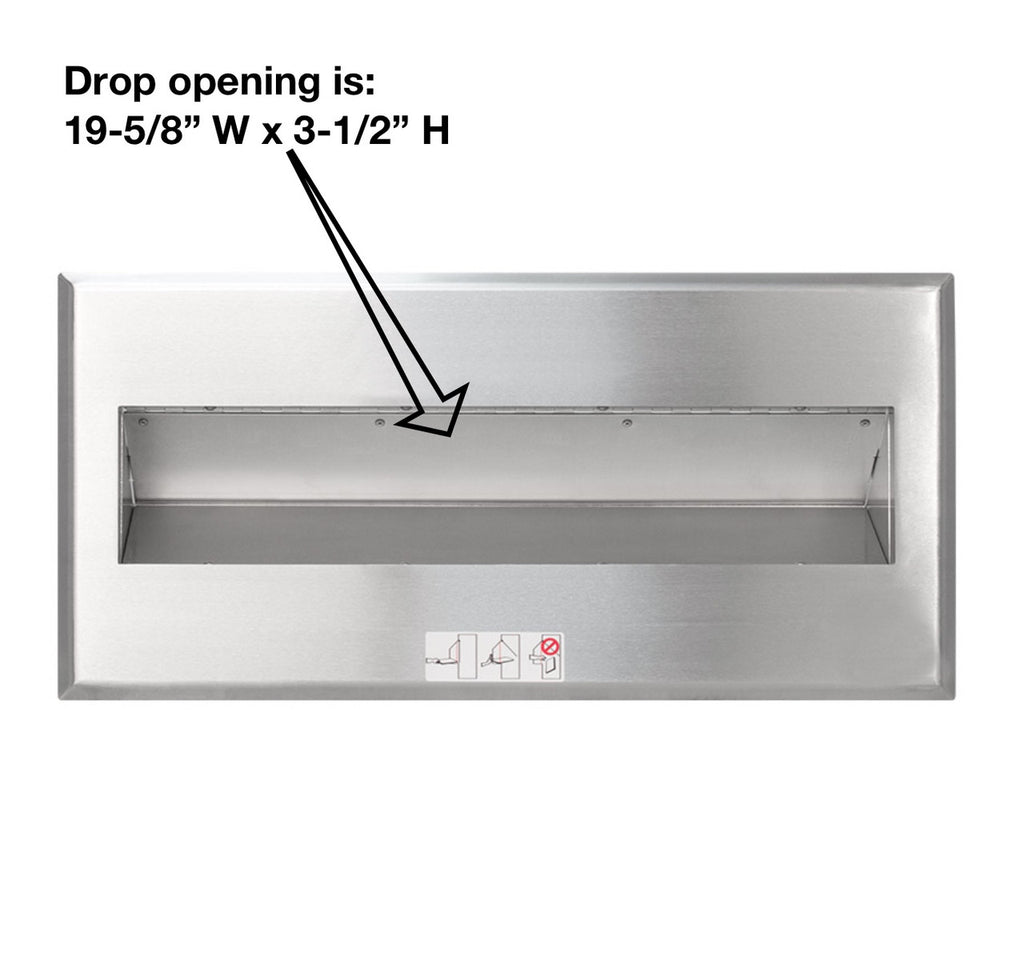

• Drop opening: 19-5/8” W x 3-1/2” H
• Maximum Wall thickness 8 inches
• Lettering: Optional vinyl lettering
• Weight: 6-1/2 lbs.
• Made in the USA
• ADA compliant when properly installed
• Interior applications only

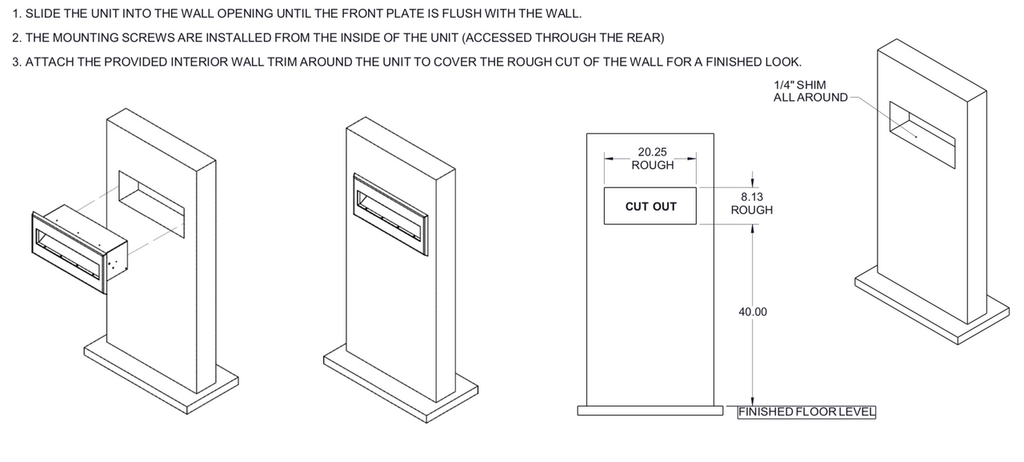

This unit is simple to install, it is pre-assembled in one piece. Basically cut a rectangular hole, insert and screw in place. Basic installation instructions included.

Our through the wall unit has a stainless steel faceplate for a sleek look coupled with an aluminum body that will never rust.

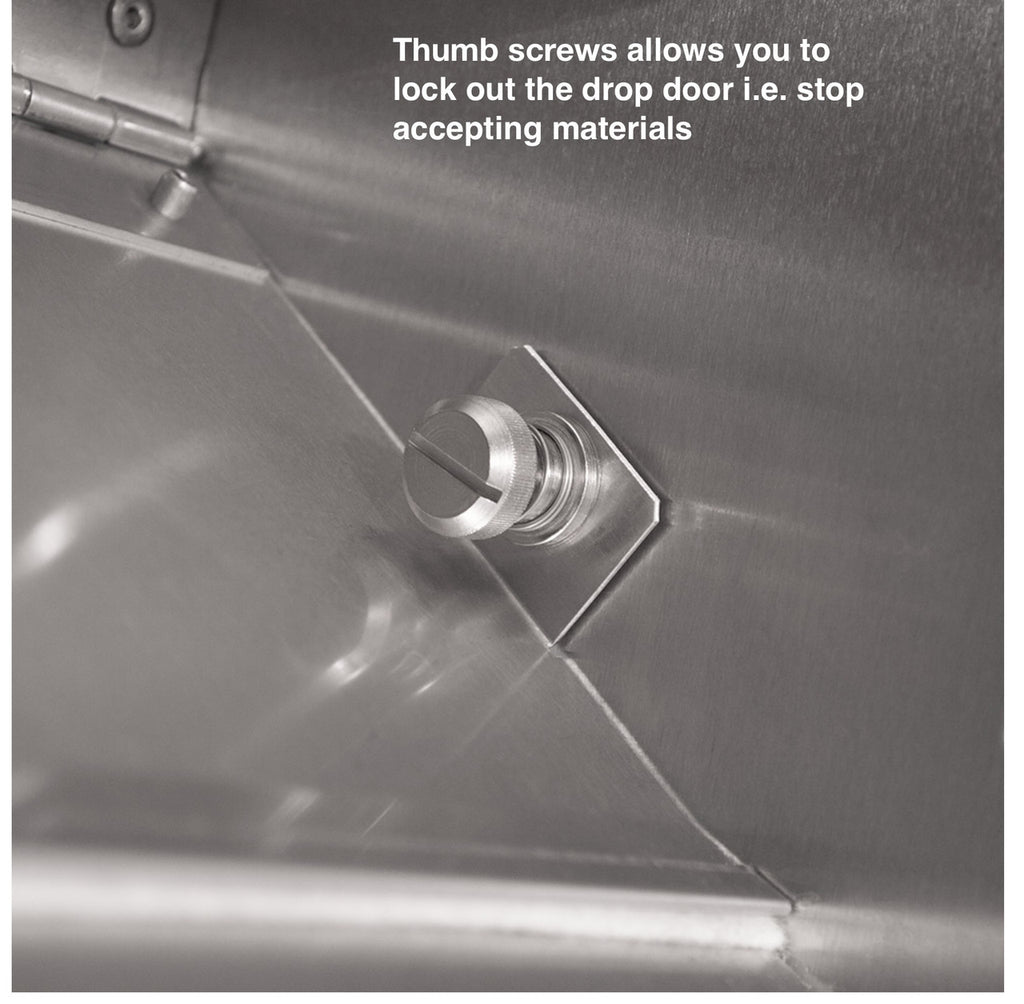

The depository flap is easily locked from the inside with thumb screws that screw directly into the studs. This is our most secure locking system and it allows you to choose when you stop accepting materials.

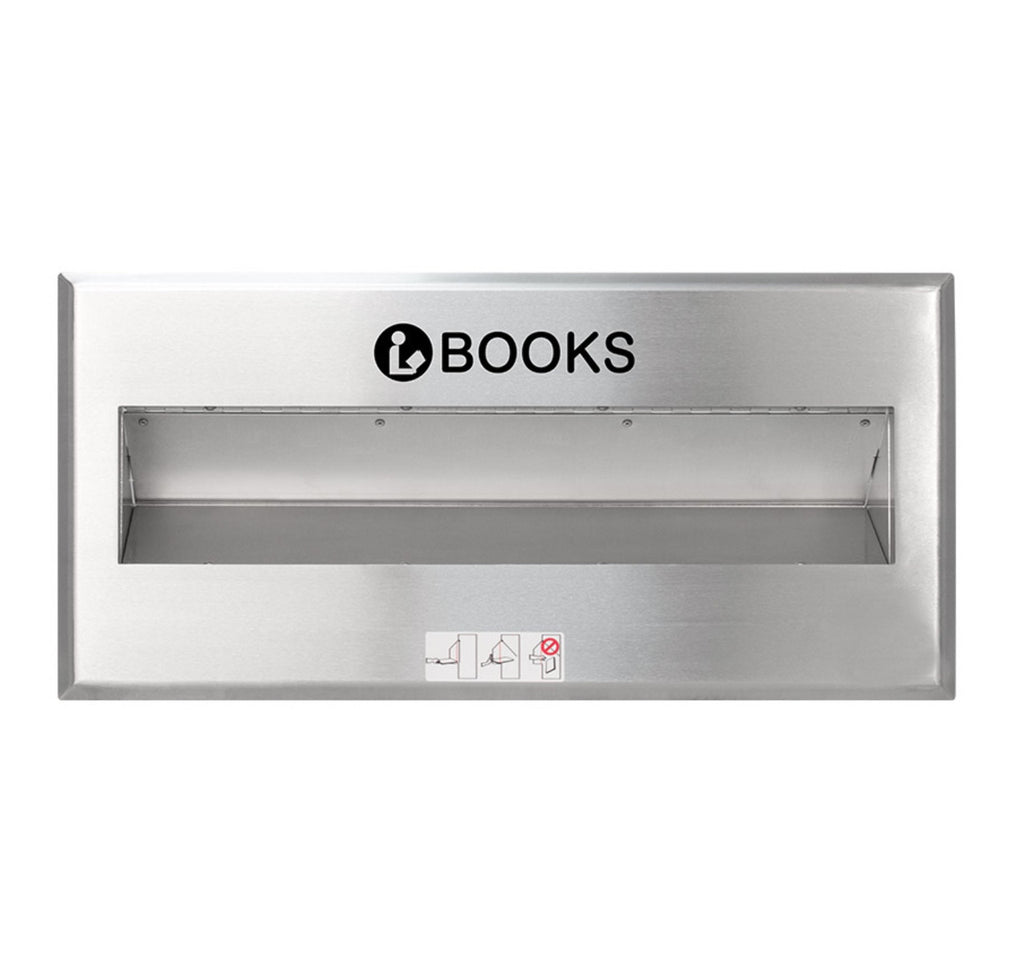

This unit has the optional vinyl lettering, select no lettering or “BOOKS,” “MEDIA,” “PAYMENTS” “RETURNS”, ETC, with the round universal library logo when applicable. We will apply this as a vinyl decal in your choice of color at no extra charge or it can be silkscreened or routed in black for an extra fee. You also have the option of custom vinyl wording up to a certain number of characters.

ADA Compliant: The Stainless Steel Interior Drop Slot is ADA compliant when properly installed. This unit allows for easy, one handed deposits without having to pull down a door. Simply push the item all the way through the depository flap.
